QC12K Swing Beam Shearing Machine

The swing beam shearing machine is a traditional mechanically operated metal cutting equipment that uses a reliable mechanical transmission system to move the cutter up and down for shearing metal sheets.
It’s stable and suited for applications with moderate cutting precision requirements .

With lower costs compared to hydraulic guillotine shears, it’s ideal for small to medium-sized factories and workshops. Commonly used for general steel structure processing and routine maintenance , it handles metal sheets within specific limits.

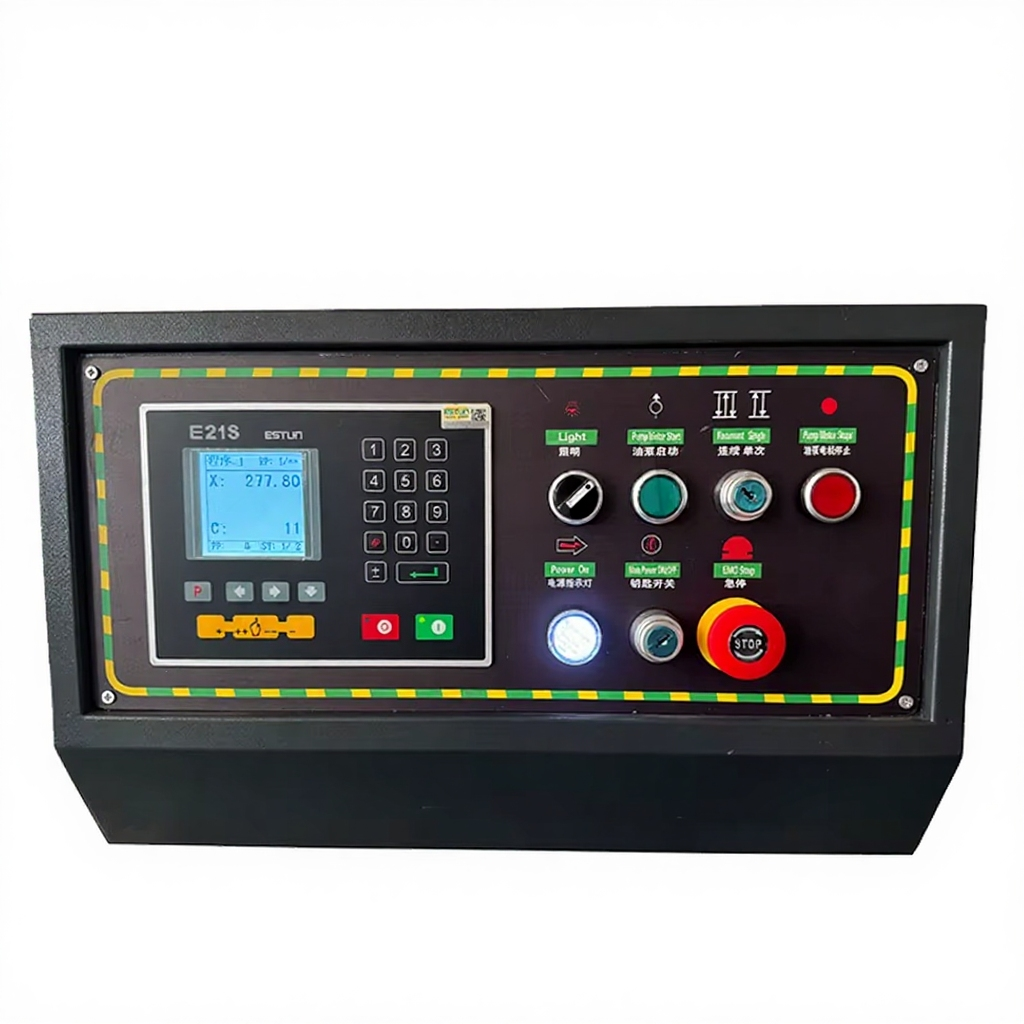

Control System
The system features dual programmable digital outputs, 40 program storage options, each with 25 steps.Built-in cutting time and retraction delay. One-touch parameter backup and restore.

Furthermore, we can choose the DAC310T system from the renowned Dutch company Delem, which automatically controls the cutting angle and blade gap for optimal performance.
Request A Quote
Control System

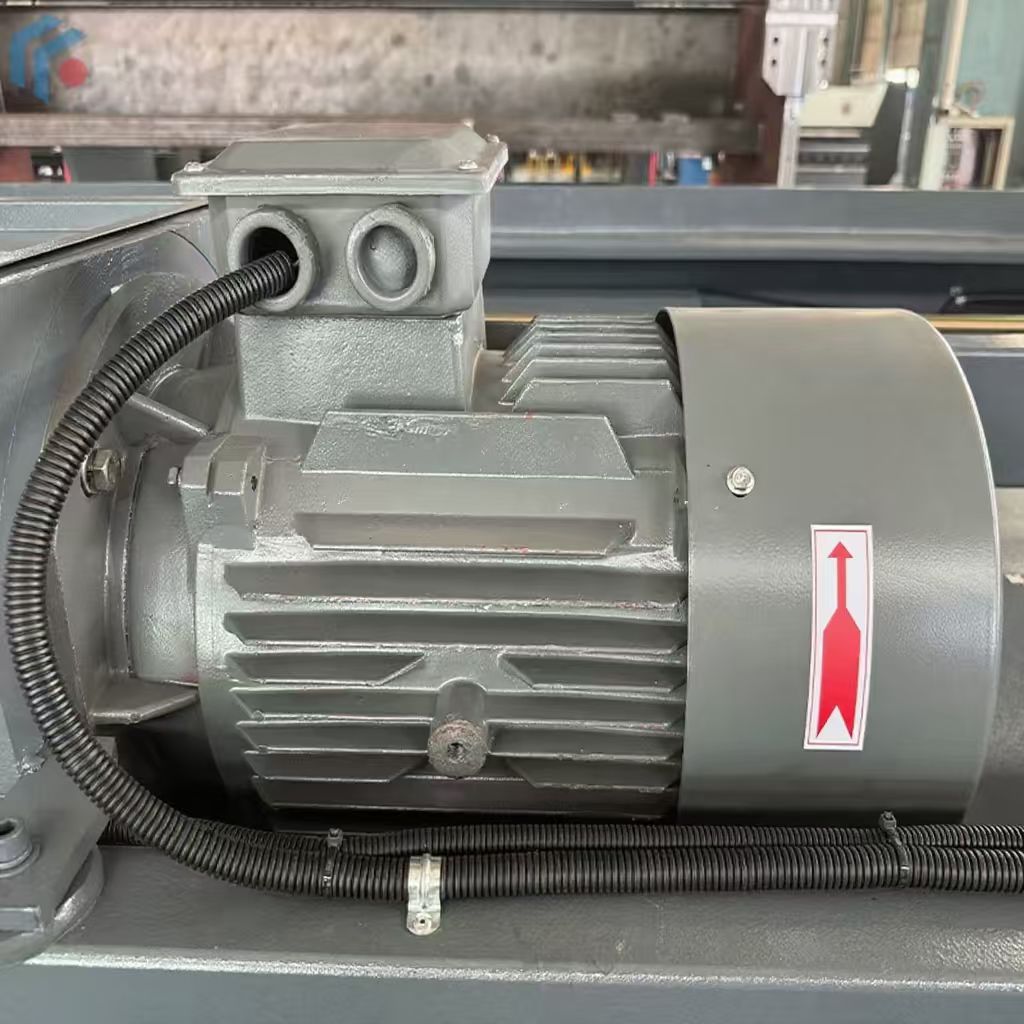

Motor
Motor ensures precise control over angles and dimensions , maintaining high accuracy in production processes.

Our high-performance main motor can be equipped with internationally recognized brands, such as Siemens, or with well-known Chinese
Request A Quote
Motor

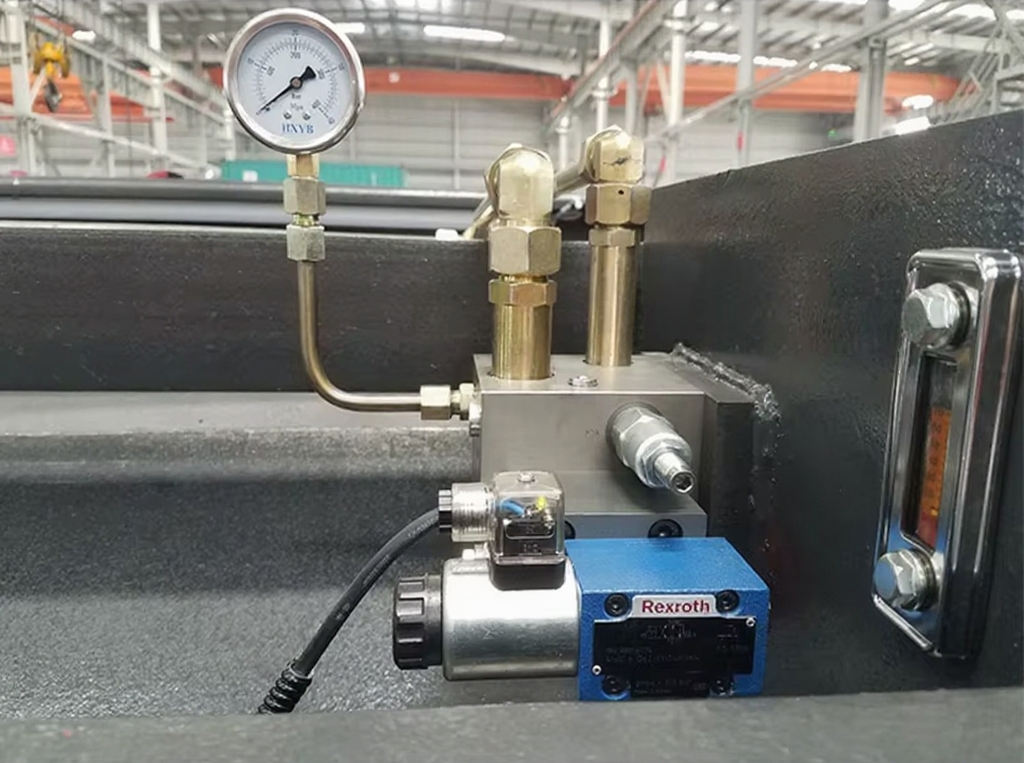

Hydraulic Valve
Bosch Rexroth valves provide reliable performance, ensuring long-term stability and enhancing the shearing machine’s durability.

We provide real-time oil pressure monitoring to ensure smooth oil circuit operations and stable equipment performance.

Thanks to our oil pressure overload protection system, oil leakage and valve jamming are rare occurrences on our machine.

Optimizing fluid flow reduces energy consumption, thereby lowering operational costs.
Request A Quote
Hydraulic Valve

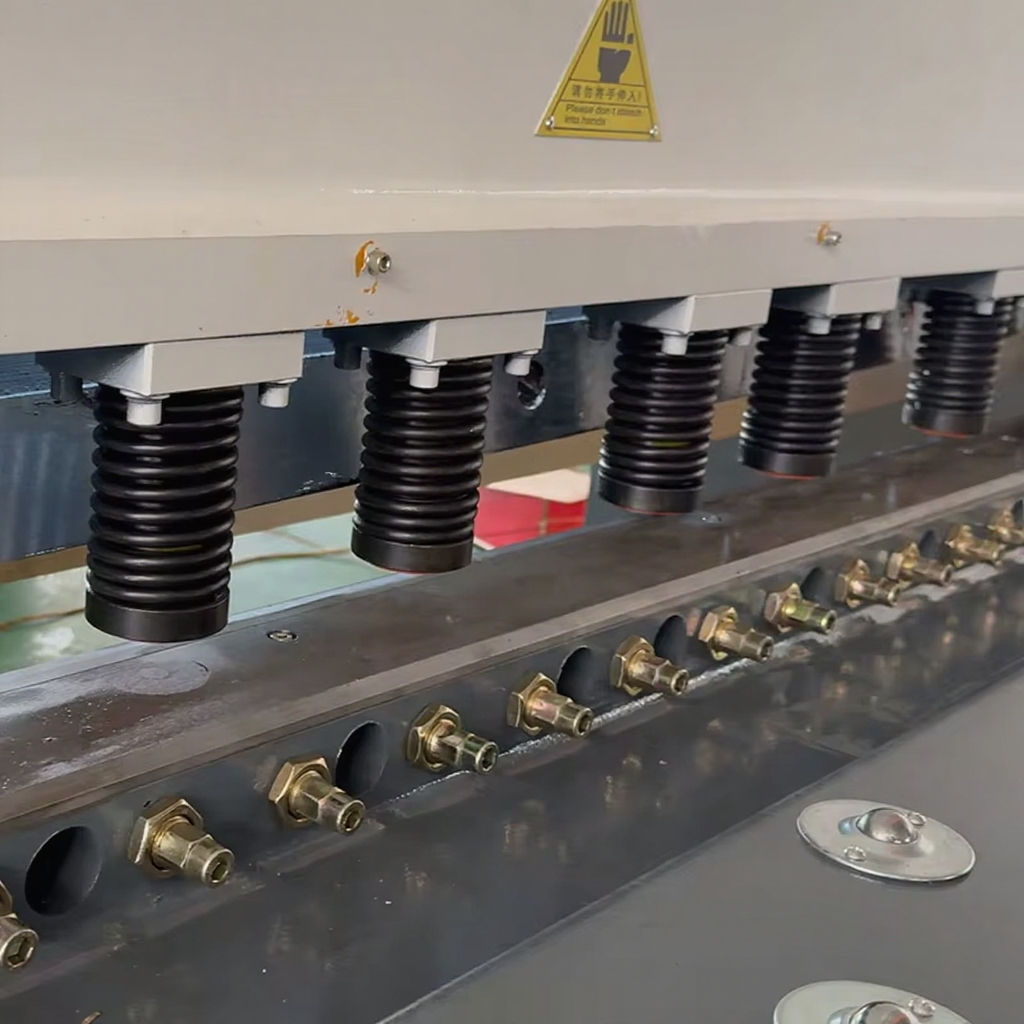

Presser
The presser foot firmly secures the material , preventing movement during shearing , ensuring line accuracy and consistency.

The presser foot evenly distributes pressure during shearing , preventing deformation and maintaining material flatness and shape.

The flexible design of the presser foot accommodates different thicknesses and materials , ensuring optimal shearing results.
Request A Quote
Presser

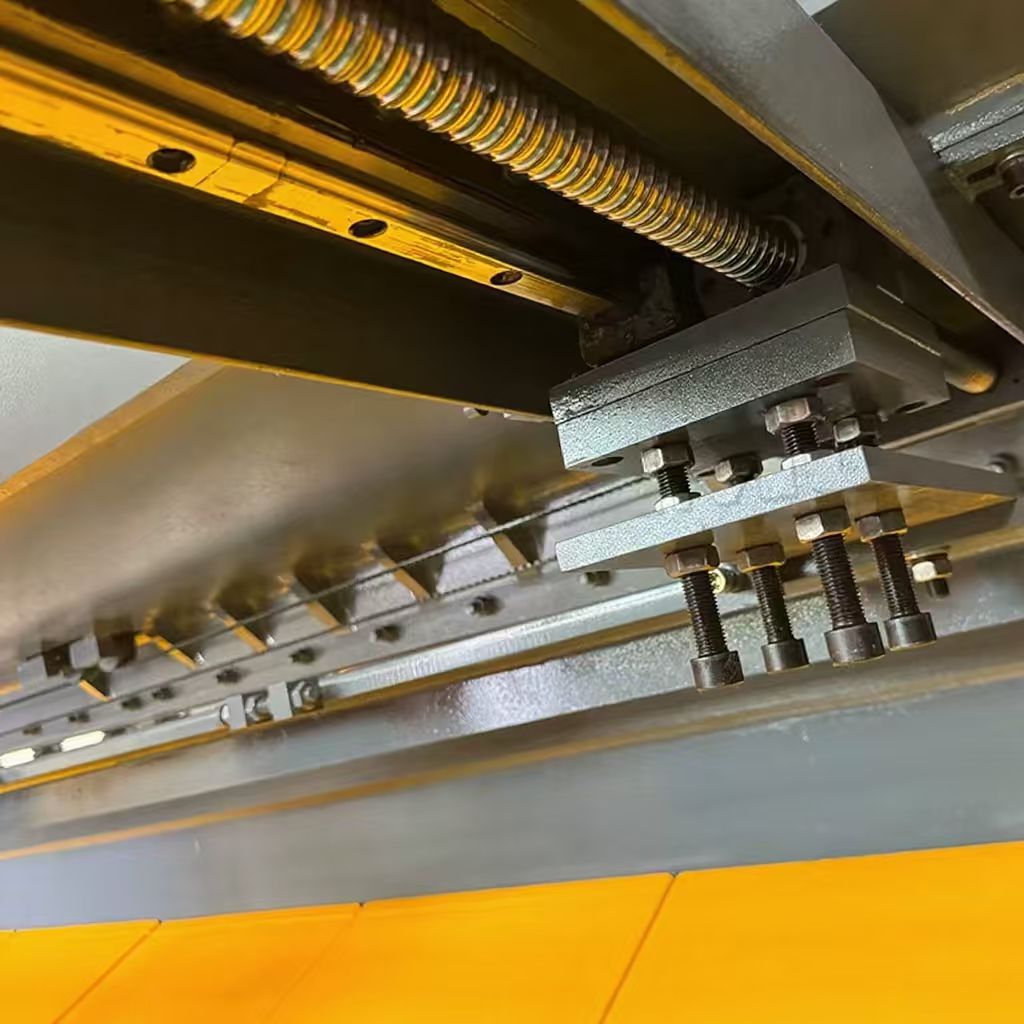

Ball Screw And Line Guide
The linear guide rail and ball screw ensure precise positioning of the back gauge , essential for accurate cutting.

The ball screw’s transmission and linear guide rail’s stability provide smooth back gauge movement , reducing vibration and noise.
Request A Quote
Ball Screw And Line Guide

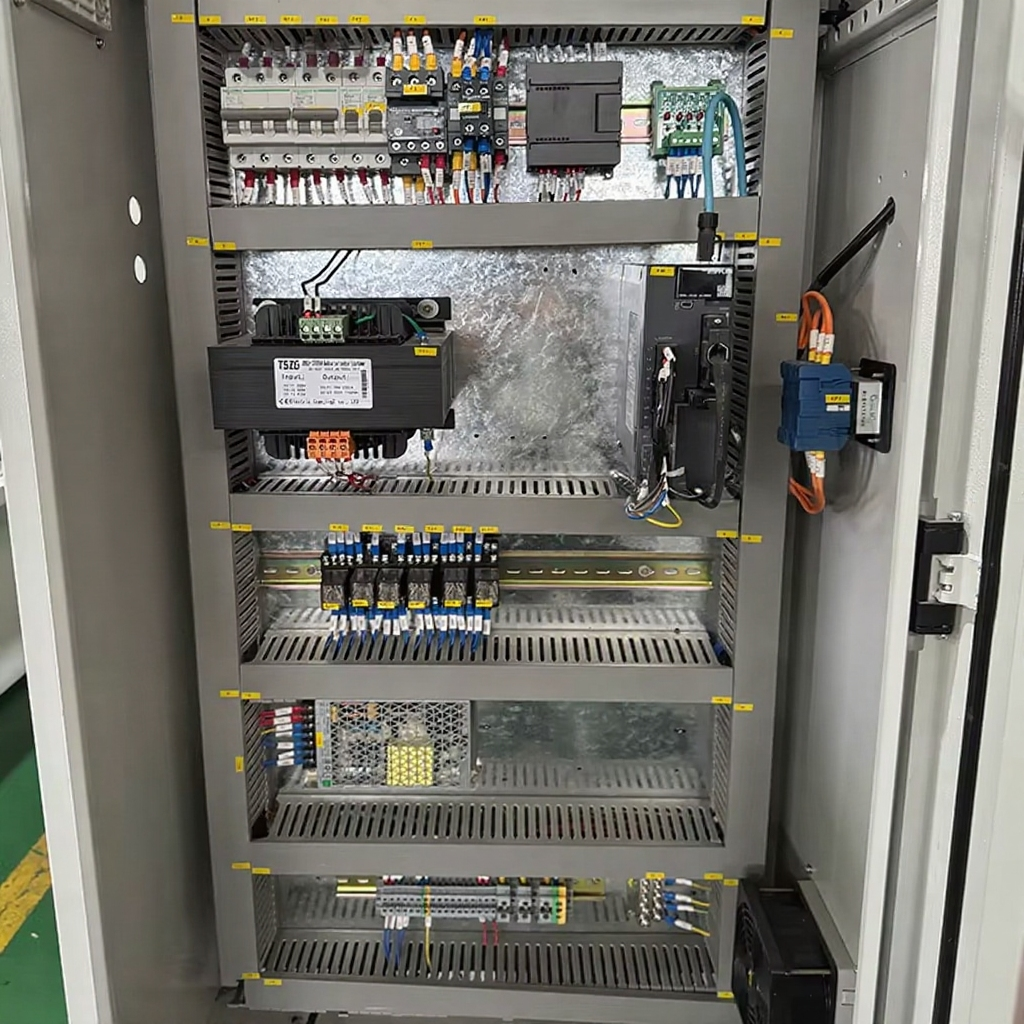

Electrical Parts
Advanced technology integrated in to the system meets high operational demands , optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
Request A Quote
Electrical Parts

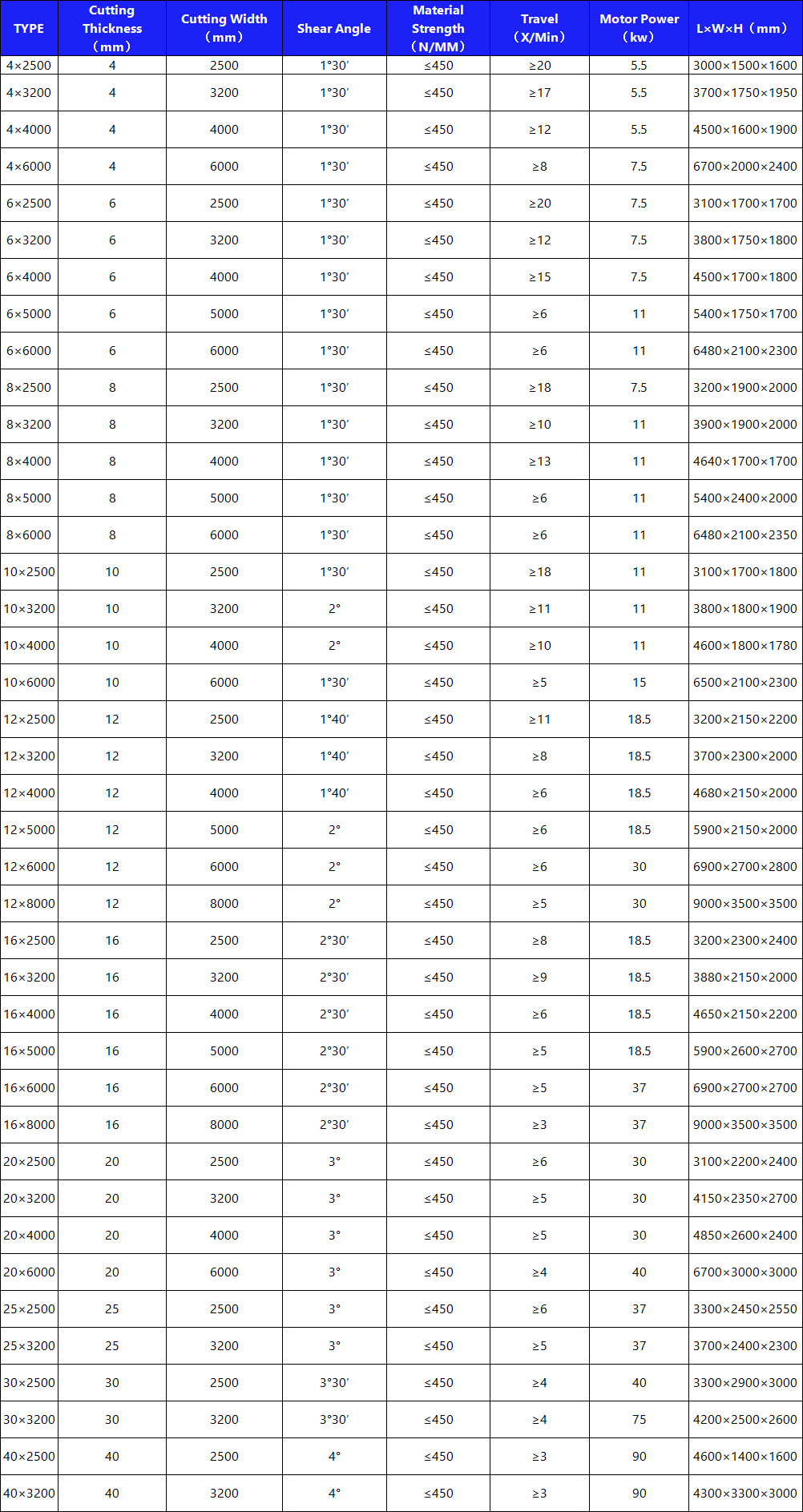

TECHNICAL SPECIFICATIONS

FOR MORE DETAILED SPECIFICATIONS, PLEASE DON'T HESITATE TO CONTACT US.
