Vertical V Grooving Machine

A vertical V grooving machine is a highly efficient and precise processing device designed specifically for slotting metal or other sheet materials. It uses vertical or angled cutting to create a variety of slot shapes, including straight, V-, and U-grooves.

It is typically equipped with a CNC system and offers high precision, automation, and versatility. It is widely used in sheet metal processing, metal product manufacturing, as well as in the electrical appliance, automotive, and aerospace industries.

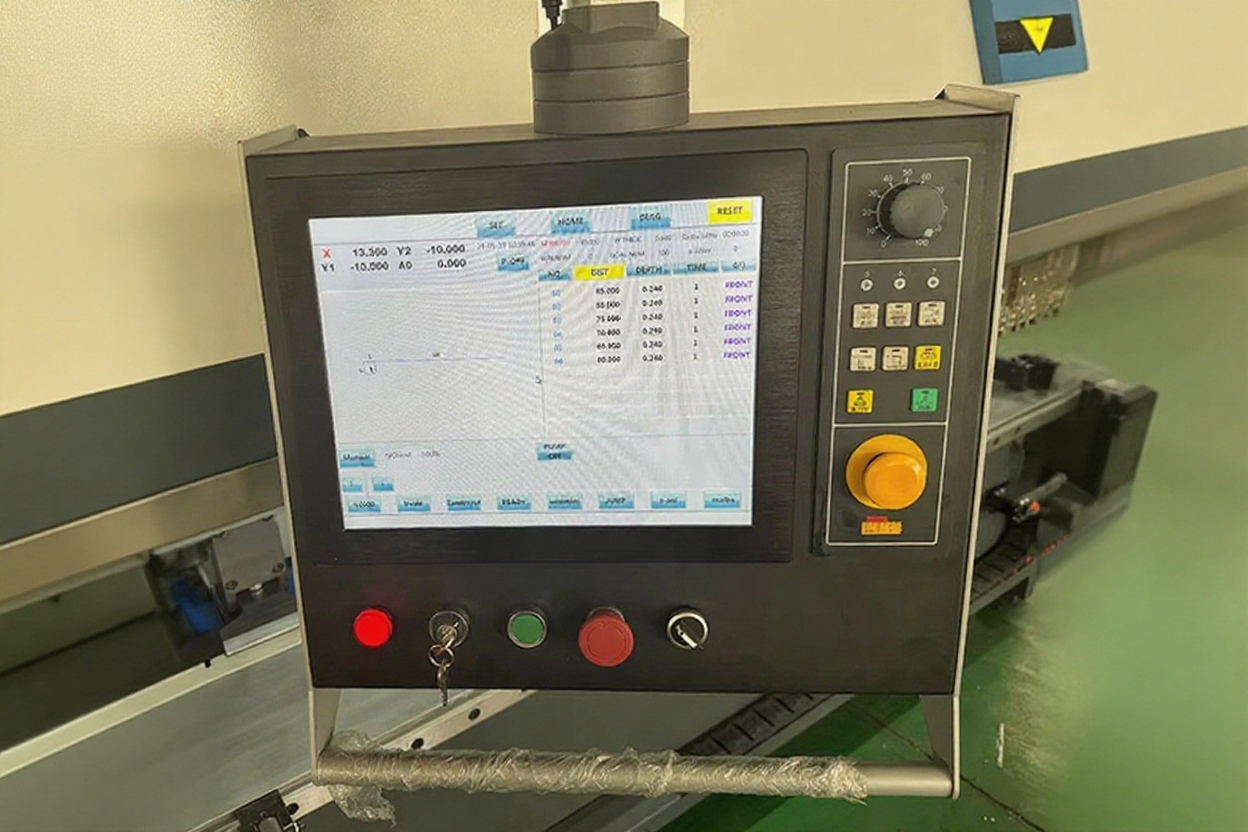

Control System
The Abel CNC Control System delivers high-precision machining with support for multiple programming methods, including G-code. Its intuitive interface and automation features boost efficiency, while real-time monitoring ensures accuracy.

Built for reliability, it handles complex tasks with fast response times and minimal maintenance. Ideal for industrial use, Abel CNC combines precision, ease of use, and durability for superior performance.
Request A Quote
Control System

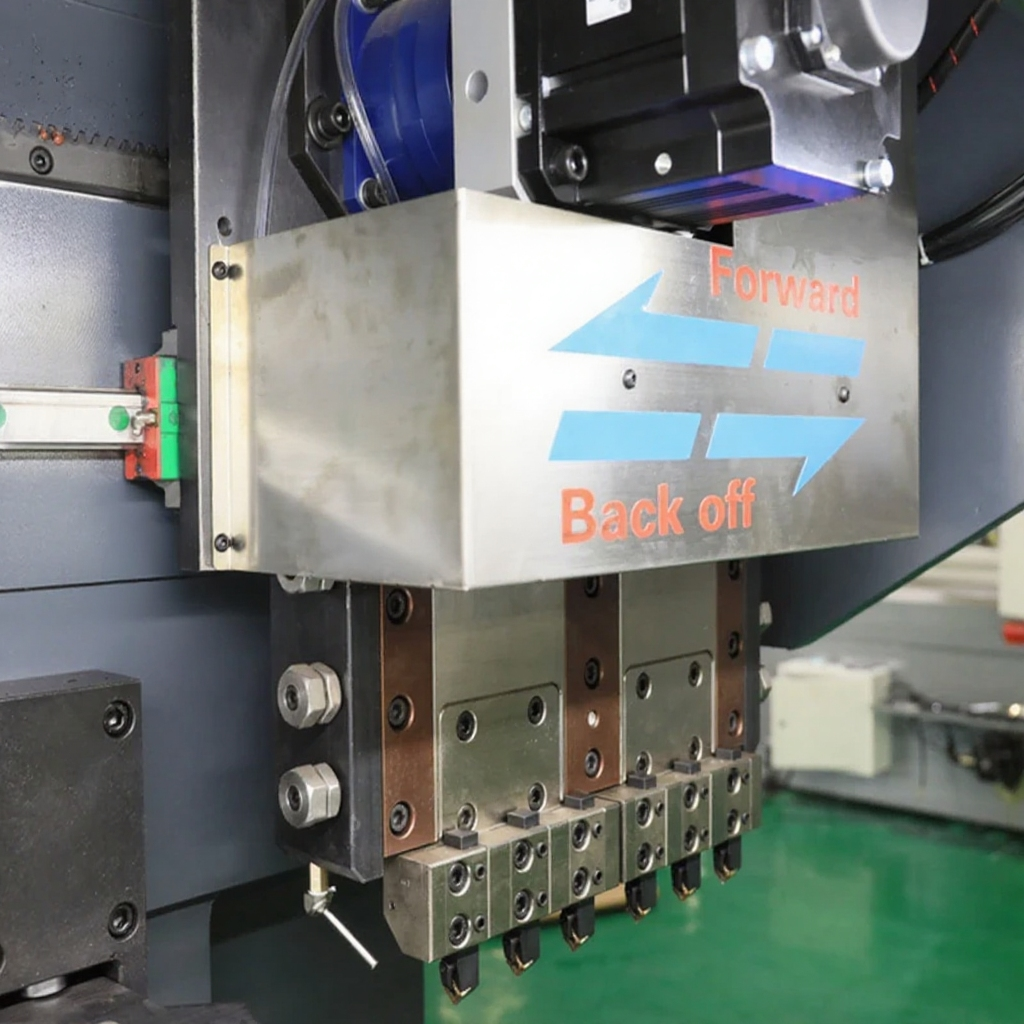

Grooving Blade
Grooving blades are typically made of high-strength steel or cast iron, offering excellent rigidity and wear resistance, ensuring stable support and precise positioning of the tool.

Grooving blades are typically manufactured from high-speed steel or cemented carbide, offering high hardness, wear resistance, and heat resistance, making them suitable for planing a variety of sheet metals.
Request A Quote
Grooving Blade

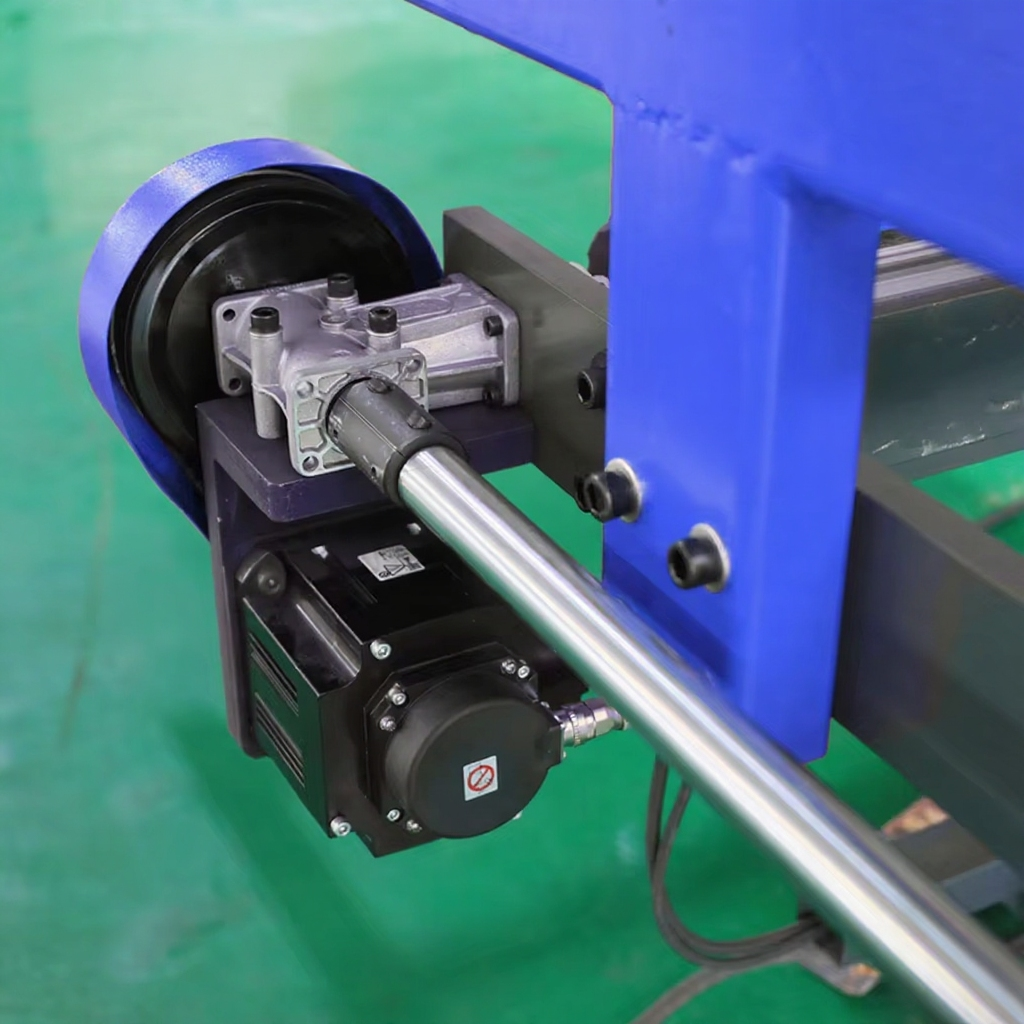

Servo Motor
This V grooving machine is driven by a servo motor and equipped with an advanced CNC system, ensuring long-term stability and reliability.

Servo motors enable precise position and speed control, making them ideal for applications requiring precise positioning and motion control.
Request A Quote
Servo Motor

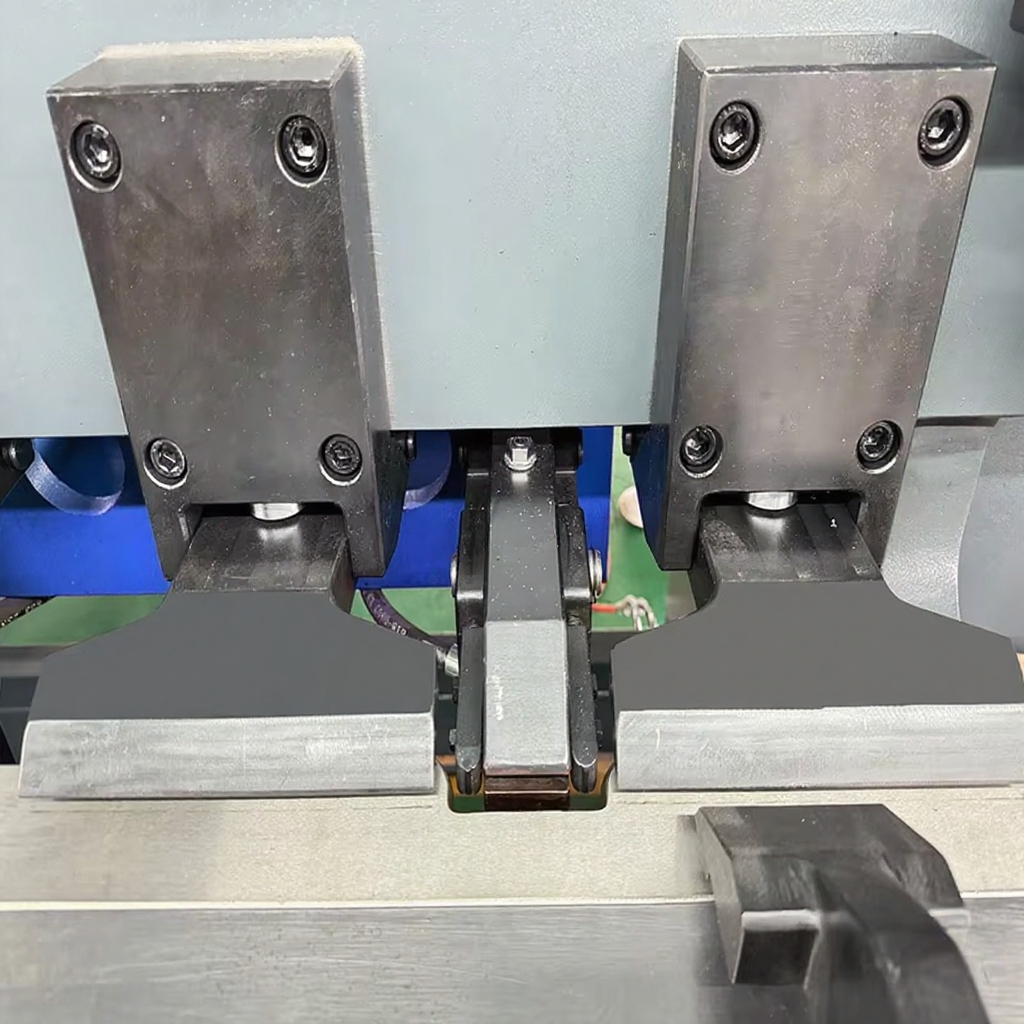

Pressing Plate
The pressing plate of a vertical V grooving machine is constructed from high-strength steel or alloy steel, securing the workpiece through mechanical or hydraulic clamping to ensure machining accuracy.

The adjustable design accommodates metal sheets of varying sizes and shapes and features precise positioning to ensure consistent slotting. Pressing plate stability is a key factor in ensuring machini
Request A Quote
Pressing Plate

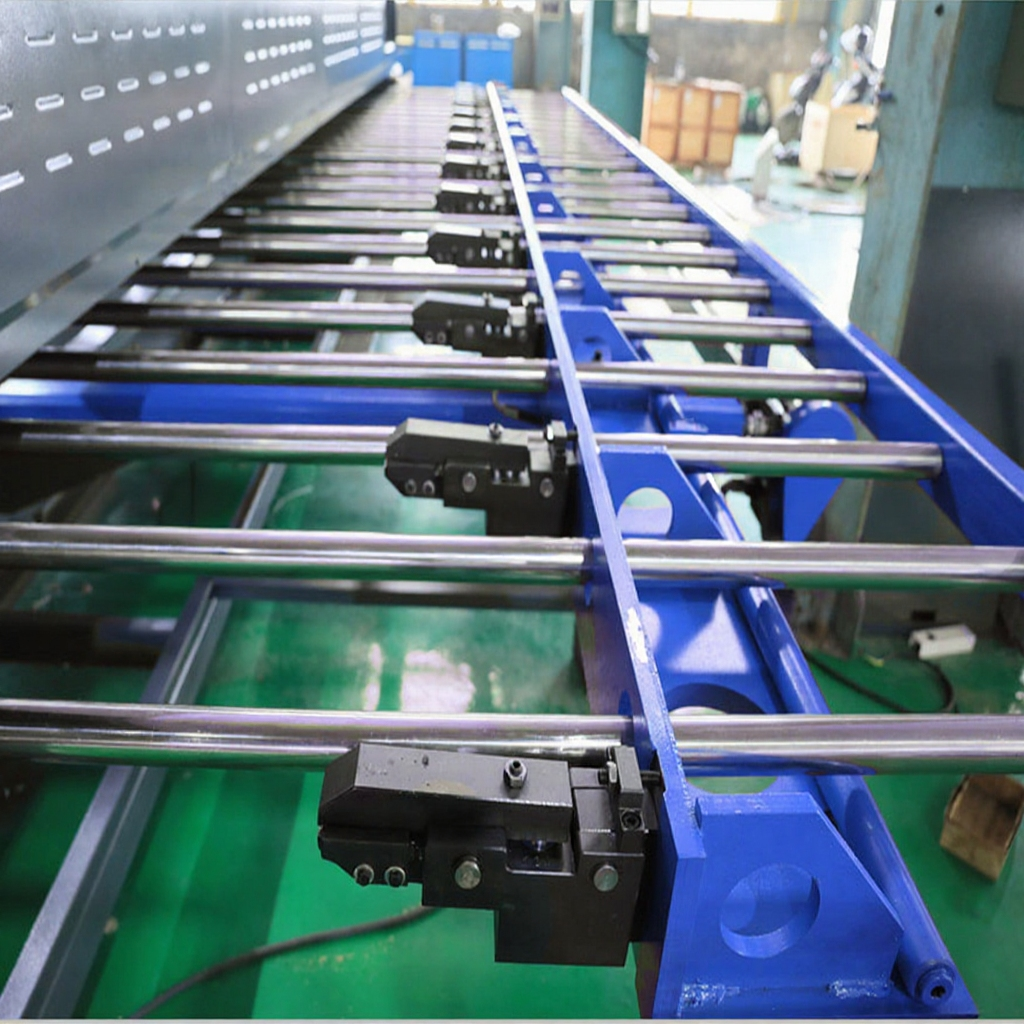

Backguage
The rear gauge feeding mechanism of a vertical V grooving machine is constructed of high-strength steel and driven by a servo motor or hydraulic system. Automatic feeding and precise positioning are achieved through a CNC system.

This mechanism allows for flexible adjustment of the gauge position and movement step length to accommodate processing of various sheet metal specifications. Its accuracy and stability directly impact the
Request A Quote
Backguage

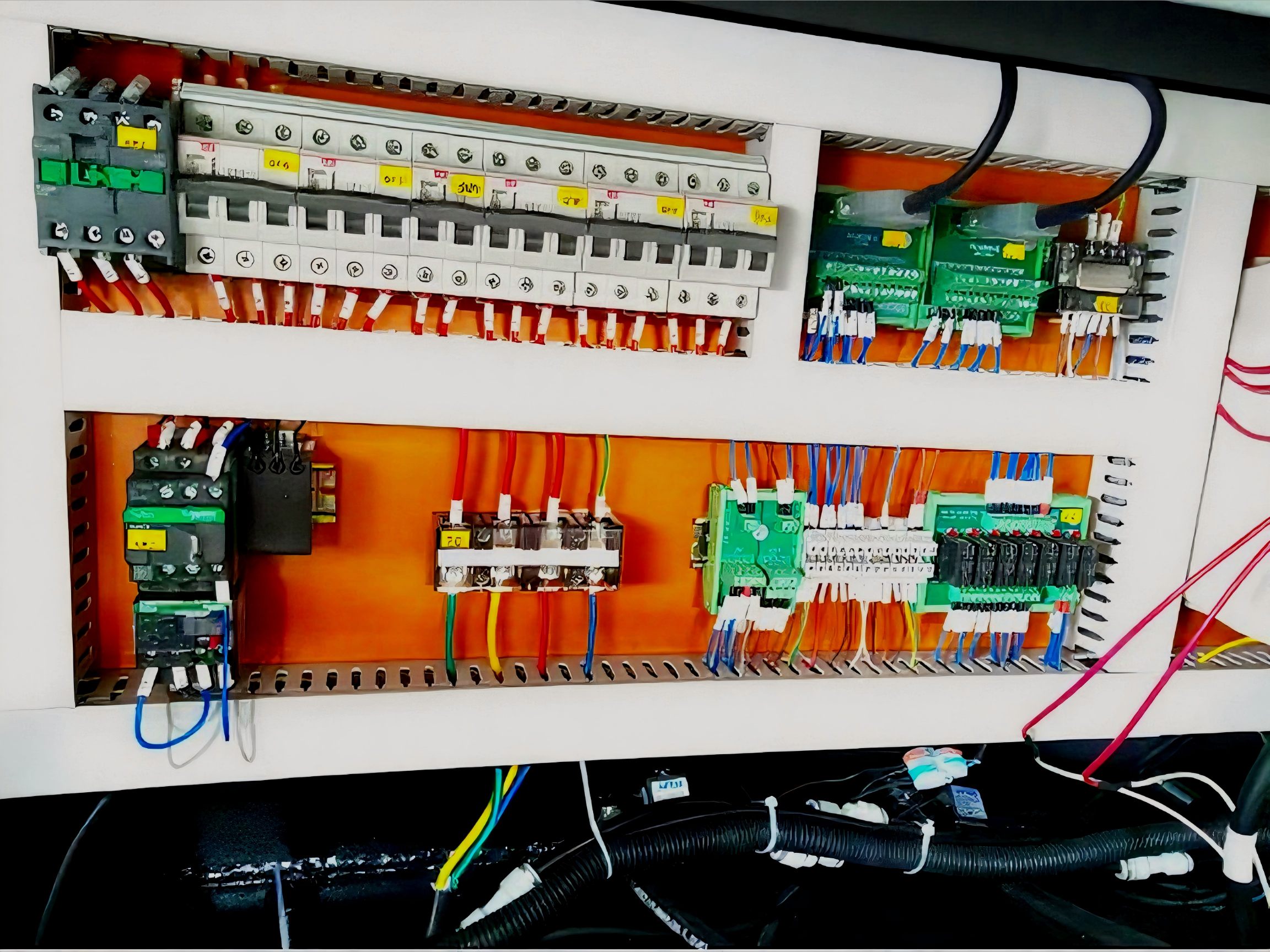

Electrical Parts
Advanced technology integrated into the system meets high operational demands, optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
Request A Quote
Electrical Parts

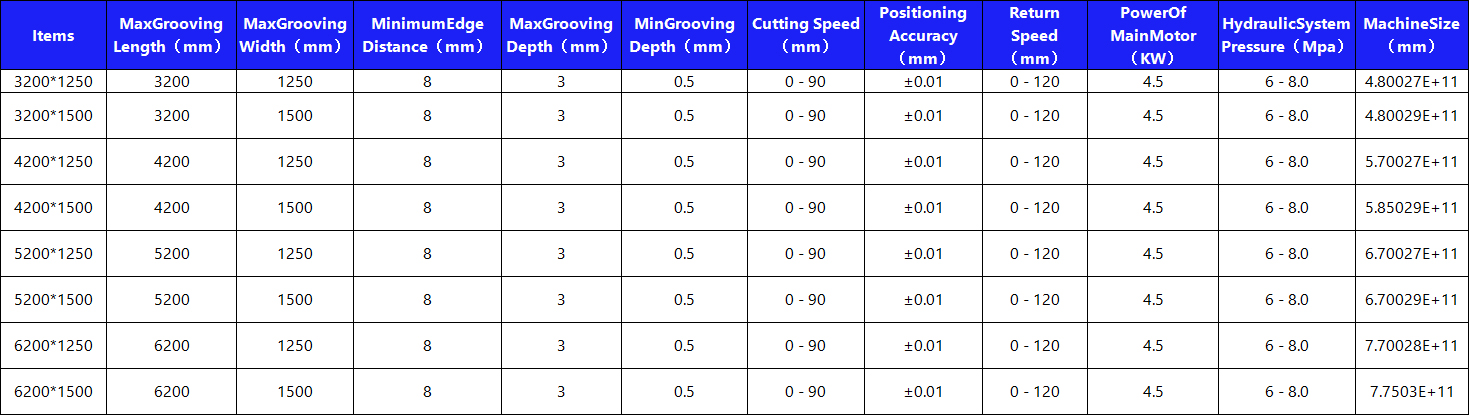

TECHNICAL SPECIFICATIONS

FOR MORE DETAILED SPECIFICATIONS, PLEASE DON'T HESITATE TO CONTACT US.

Contact Us

Not sure which machine is right for your sheet metal product? Let our knowledgeable sales team guide you in selecting the most suitable solution for your needs.
